商品の詳細:
|
| 機械: | 装置をひもでつなぐケーブルの張力 | 最大断続的な緊張: | 2x45/1x90kN |
|---|---|---|---|
| 最大連続張力: | 2x40/1x80kN | 最大逆引く力: | 2×35/1x70kN |
| 雄牛の直径: | 1300/1500mm | 最大導体の直径: | 40mm |
| コンダクター数: | 双子 | エンジン: | ディーゼルCummins |
| 油圧ポンプ: | ドイツのレックスロス | 応用: | 伝達頭上式の電力線 |
| ハイライト: | 90kN hydraulic conductor puller,cable tensioner for power line,hydraulic stringing equipment with warranty |
||

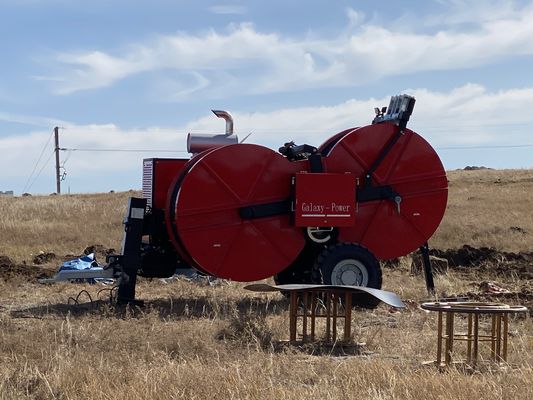

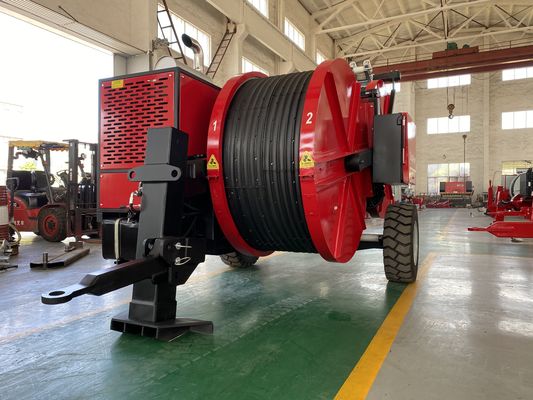

1x90kN High Quality Cable Hydraulic Conductor Puller and Tensioner For Power Line Stringing
Cable Tension Stringing Equipment
Our GS90 9Ton hydraulic puller machine match with our GL2x40 8Ton hydraulic tensioner machine ,
Two Bundled Conductors Stringing Equipments are used for overhead transmission line two
conductors or OPGW stringing. We can supply full set of hydraulic puller,hydraulic tensioner,
drum stands, stringing blocks, anti twisting pilot wire rope, running boards, come along clamps,
ratchet chain hoists, motorised winches, gin poles, hydraulic compressors, swivel joints,
socket pulling grips, fixed joints, joint protectors, etc.
|
Max intermittent tension 2x45/1x90kN
Max continuous tension 2x40/1x80kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 2x20/1x40kN
Max reverse pulling force 2×35/1x70kN
Max reverse pulling speed 5km/h
|
|
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V
|
|
Bull-wheel diameter 1300/1500mm
Max conductor diameter 40mm
Groove number 2x5
Total weight 6250kg
Overall dimension 4400×2280×2550mm
|
|
Engine Cummins
Hydraulic pump GermanRexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexrothn
Hydraulic meter German WIKA
Operating handle German Rexroth
|
Overhead Line Stringing Equipment Configuration
Overhead Line Stringing Equipment Configuration Hydraulic Transmission
Overhead Line Stringing Equipment Configuration Additional Devices
