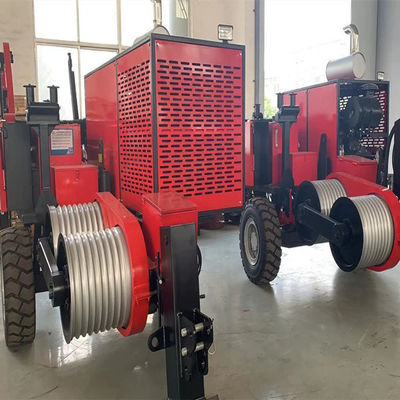

GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment

GS90 Hydraulic Puller and Tensioner for Overhead Transmission Line Stringing Equipment

Cable Tension Stringing Equipment

Our GS90 9Ton hydraulic puller machine match with our GL2x40 8Ton hydraulic tensioner machine ,

Two Bundled Conductors Stringing Equipments are used for overhead transmission line two

conductors or OPGW stringing. We can supply full set of hydraulic puller,hydraulic tensioner,

drum stands, stringing blocks, anti twisting pilot wire rope, running boards, come along clamps,

ratchet chain hoists, motorised winches, gin poles, hydraulic compressors, swivel joints,

socket pulling grips, fixed joints, joint protectors, etc.

Cable Tension Stringing Equipment   Engine :

Diesel 77kw(103hp) Cooling system water Electrical system 24V





Cable Tension Stringing Equipment Characteristics :

Bull-wheel diameter 1300/1500mm Max conductor diameter 40mm Groove number 2x5 Total weight 6250kg Overall dimension 4400×2280×2550mm





Overhead Line Stringing Equipment Main Configuration :

Engine Cummins Hydraulic pump GermanRexroth/Dnish Danfoss Main motor German Rexroth/French Leduc Speed reducer German Rexrothn Hydraulic meter German WIKA Operating handle German Rexroth





Overhead Line Stringing Equipment Configuration

·Hydraulic dynamometers

·Hydraulic oil cooling system

·Digital speed and meter counter

·Hydraulic front stabilizer

·Grounding connection point

·Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor





Overhead Line Stringing Equipment Configuration Hydraulic Transmission

·The machine can realize step less speed

·The machine is provided with tension presetting system





Overhead Line Stringing Equipment Configuration Additional Devices

·Lighting system for the trailer

·2 hydraulic rope/conductor clamp (extra charge)

·Swivel guide rope roller

·Trailer for towing at max speed of 30 km/h

·Digital speed and meter counter
